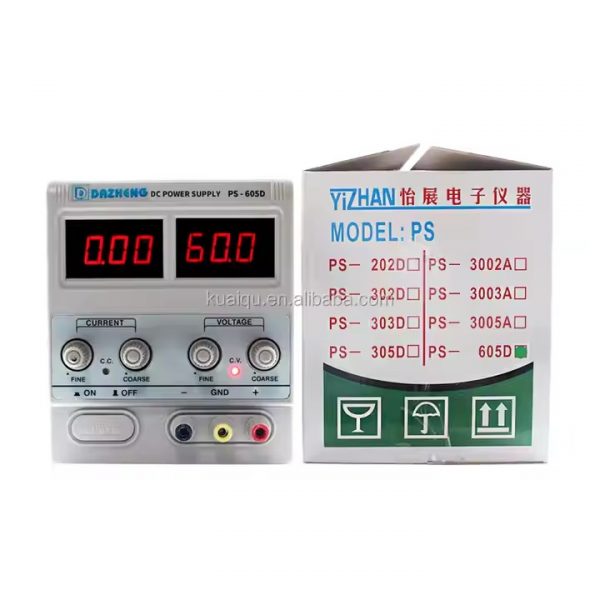

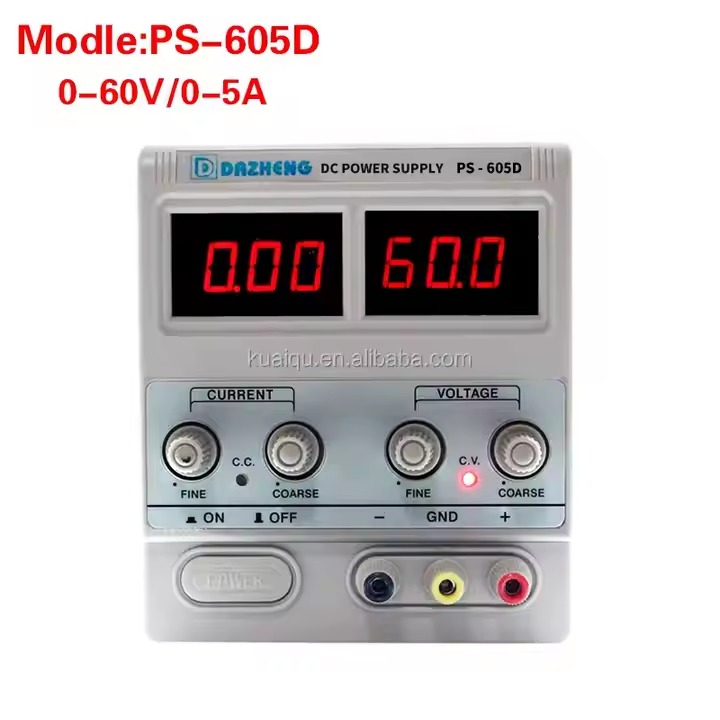

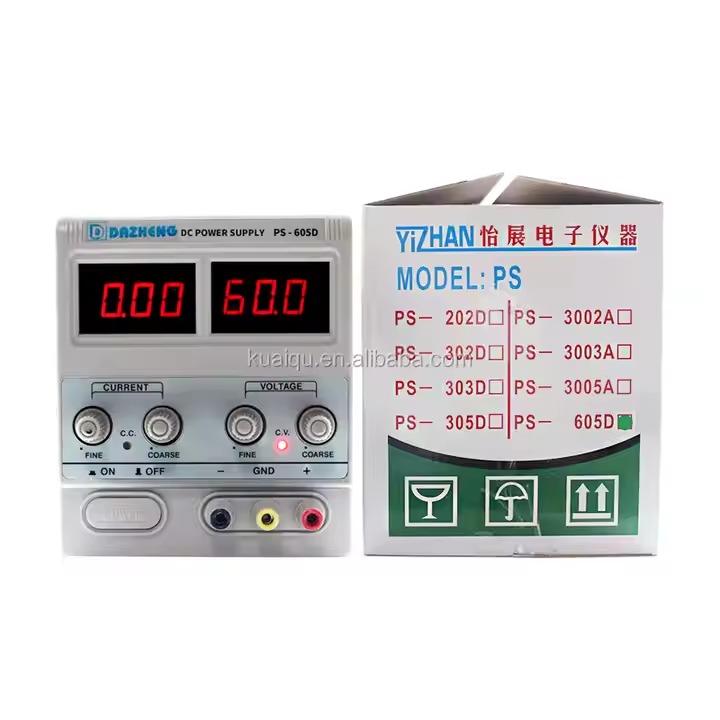

منبع تغذیه داژنگ 60 ولت/ ۵ آمپر DAZHENG PS-605D

نقد و بررسی اجمالی

منبع تغذیه داژنگ 60ولت 5آمپر DAZHENG PS-605D

مشخصات :

نوع : ترانسی خطی Leanier
رنج ولتاژ : 0 ~ 60 V DC
رنج جریان : 0 ~ 5 A DC
محافظت شده در برابر اتصال کوتاه
مقدار ریپل : <1m VRMS
یک سال ضمانت تعمیر
ساخت : چین

General
Manufacturer: Dazheng
Model: PS-605D
Voltage: 0 ~ 60V
Electric Current: (Amps) 0 ~ 5A
Display Digital: (Demonstration Voltage/Electric Current)
Overheat Protection: Yes
Short Circuit Protection: Yes
Automatic Cooling Fan: Yes
Fixed Working Conditions
Supply Voltage: AC ~240V / 50Hz
Working Condition Temperature: -10~40°C Relative humidity <90%
Storage Condition Temperature: -20~80°C Relative humidity <80%
Constant Voltage Active Status
Output Voltage: 0 to nominal value (continuously adjustable)
Voltage Stability: Power source stability: <0.01% +2mV
Load stability: <0.01% +2mV
Time Restore: 100uS
Ripple and Noise: <1m VRMS (effective)
Temperature Coefficient: <300PPM/°C
Constant Flow Active Status
Output Current: 0 arrive to between nominal value (adjustable)
Power Source Stability: <0.2% +3mA
Load Stability: <0.2% +3mA
Ripple and Noise: <3mARMS (effective)
Weight & Dimensions
