منبع تغذیه 35ولت 6آمپر Hantek HDP135V6S

Name: منبع تغذیه حافظه دار 35ولت 6آمپر Hantek HDP135V6S (RS232)
Brand: هنتک
SKU: 13180
Availability: InStock

Four-digit display voltage and current, resolution up to 10mV/1mA;

Standard USB quick charge function, support a variety of quick charge protocols; Storage functions up to 10 groups;

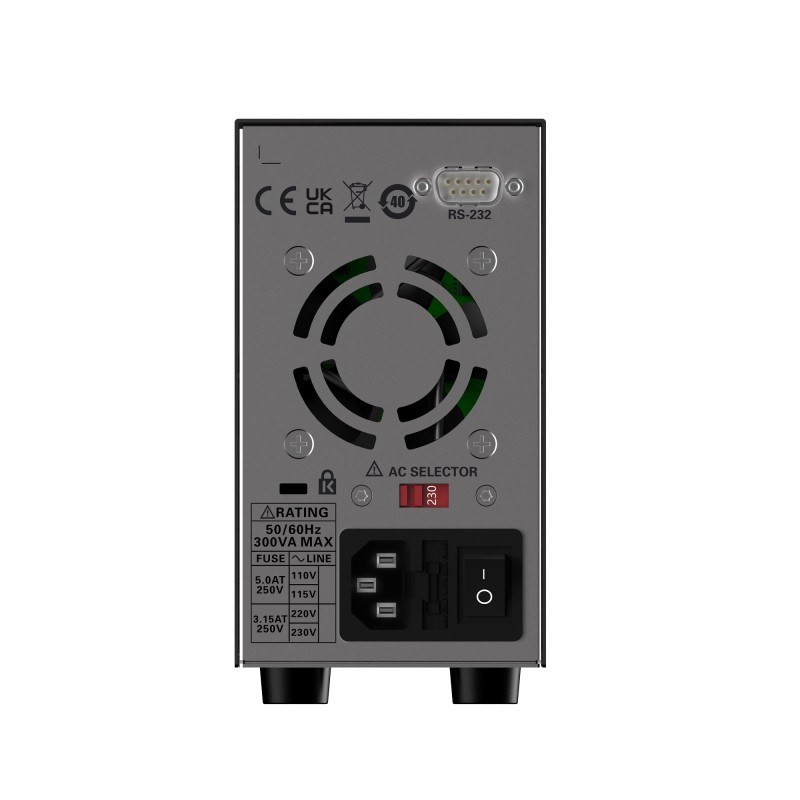

AC input voltage 230/115V switch, universal; Fully isolated serial port,

software support multiple power supply control,

easy to set up measurement and control or aging system;

Over voltage, over current, overload, overheating, short circuit protection functions;

Low noise temperature control fan, quiet and durable; 35V/6A output is stable and pure; On/Off output control,

one-button panel lock function to prevent misoperation.

It is an ideal power supply for laboratory, production line and home appliance maintenance.

Model	HDP135V6	HDP135V6S	HDP135V6A	HDP135V6B
Channel	1CH
Storage	10 Groups of data
Output voltage/current	35V/6A
Input voltage	115 VAC ± 10%, 230 VAC ± 10%, 50/60Hz		230 VAC ± 10%, 50/60Hz	115 VAC ± 10%, 50/60Hz
Maximum output power	210W
Communication interface	None	RS232	None	None
Voltage
Load regulation	≤0.1% + 5 mv
Linear regulation	≤0.01% + 5 mv
Set resolution	10mV
Set precision	≤0.1% + 1 digits
Read back resolution	10mV
Read back accuracy	≤0.1% + 1 digits
Ripple	10mVrms
Current
Load regulation	≤0.2% + 3mA
Linear regulation	≤0.2% + 3mA
Set resolution	1mA
Set precision	≤0.2% + 3mA
Read back resolution	1mA
Read back accuracy	≤0.2% + 3 digits
Ripple	5mArms
Overvoltage protection (OVP)	0 ~ 35V ± 0.2%FS
Maximum voltage	35V ± 0.2%
Overcurrent protection (OCP)	0 ~ 6A ± 0.2%FS
Maximum current	6A ± 0.2%
Quick charge
Output voltage range	5V~12V
Output power	Maximum: 18 w
Supported fast charging protocol	DCP (Apple, Samsung and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC
General features
Working conditions	Temperature -10 ° C to 40 ° C, relative humidity ≤80%
Storage conditions	Temperature -20 ° C to 60 ° C, relative humidity ≤80%
Cooling	Air cooling
Weight	2 Kg
Size	85 * 160 * 260 (mm)

مشخصات کلی

سایر مشخصات

گارانتی	گارانتی اصالت ، سلامت فنی و فیزیکی کالا + 5 سال خدمات پس از فروش
